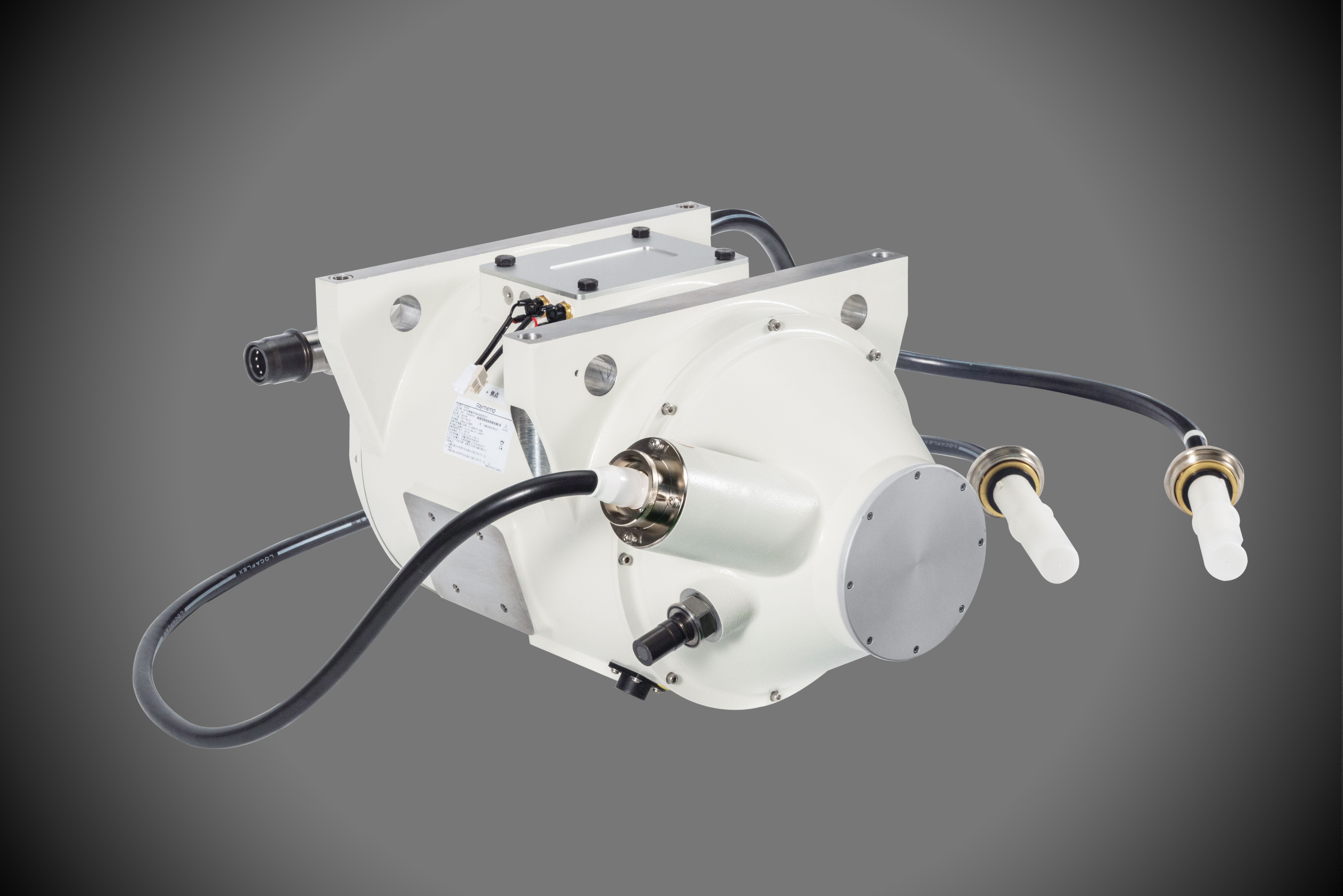

Product Model | RS500 |
Nominal X-ray Tube Voltage (kV) | 140 |
Nominal Focal Spots (mm) (YY/T 0063) | F1: 0.5 x 1.0 F2: 1.0 x 1.0 |
Nominal CT Anode Input Power (kW) | F1: 36 F2: 50 |
Maximum Anode Heat Content (MHU) | 5.0 |
Target angle | 7° |
Dynamic Focal Spot | Yes |
Dimension Length x Width x Height (mm) | 586 x 378 x 324 |
| Weight (kg) | 84.3 ± 0.3 |
| Product Advantage | High Heat Content；Deflection；Low Noise；Weight parent；Small size |
| Substitute XTA | CTR2150 |
| Compatible CT Model | Philips MX 16 / Neusoft NeuViz 16 / United Imaging uCT 510 / 530 / 550 / MinFound ScintCare 16 / Sinovision Insitum 16 |
